For automotive professionals with advanced diagnostic skills, the GODIAG GT100 OBDII Breakout Box offers a powerful tool that enhances the ability to troubleshoot, diagnose, and even program ECU systems in vehicles. While it’s not a tool for the average home mechanic, for those with the expertise, it provides a level of detail and functionality that is hard to beat.
Build Quality and Accessories
The first thing that stands out about the GODIAG GT100 is its exceptional build quality. This device is solidly constructed, made to last, and includes all the necessary accessories, jumpers, and harnesses to hook it up to both a car's OBDII port and a test bench. The inclusion of separate power switches for each module adds another layer of convenience, setting it apart from cheaper alternatives. This feature is particularly useful when testing individual control modules outside the full vehicle system, allowing for isolated and focused diagnostics.
Key Features and Functionality

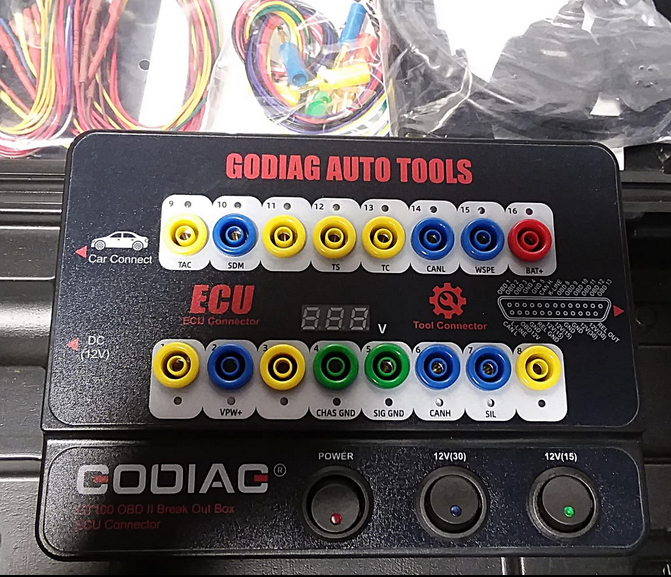

At its core, the GODIAG GT100 serves as a breakout box that provides banana jack ports for every pin of the OBDII connector. This allows you to measure the signals on each of the lines while simultaneously using your diagnostic scanner to gather data from your car. This is a game changer when troubleshooting CAN bus communication issues, as it enables you to observe the signals directly, which you can then analyze using a lab scope.
For those who do more than just general diagnostics, the GODIAG GT100 goes beyond basic functionality. With the right tools, it allows for standalone ECU programming—an advanced capability that opens up a world of possibilities for automotive technicians looking to broaden their expertise. The inclusion of features like this is a testament to how well this tool has been designed for professionals who want to take their diagnostics and repair capabilities to the next level.
Practical Use and Benefits
For car repair specialists who rely on more than just a basic code reader, this breakout box is a highly valuable asset. Using a multimeter at the OBDII port can provide some general information about the communication lines, but the GODIAG GT100 takes things a step further. It gives you the ability to probe the CAN lines directly and observe their activity in real time using a lab scope. This is critical when diagnosing complex communication issues, as it provides a much clearer picture of the signals traveling through the system.
However, the tool's capabilities don’t stop at diagnostics. It also assists with functions like resetting warning lights, saving vehicle settings when the battery is disconnected, and much more. While the box itself doesn't perform these tasks automatically, it acts as a conduit for other tools, helping automotive technicians save time and money by allowing them to conduct comprehensive diagnostic work without relying on more expensive dealership services.
Limitations and Drawbacks
While the GODIAG GT100 is an excellent tool, it does have a few limitations. For one, the lack of clear instructions is a significant drawback. Since the breakout box is intended for advanced users, there’s an expectation that you already have the knowledge to understand how to use it effectively. Without comprehensive documentation, new users may find themselves needing to seek additional guidance from online resources or videos.
Another minor issue is the lack of a dedicated case for the kit. The device comes packed in a simple cardboard box, which isn't ideal for keeping everything organized and protected. A hard case or even a soft pouch would have been a welcome addition to improve the overall experience.
The GODIAG GT100 OBDII Breakout Box is a highly functional and feature-rich tool, ideal for automotive professionals who need an in-depth look at a vehicle's communication systems. It is perfect for diagnosing CAN bus issues, performing ECU programming, and saving vehicle settings, among many other tasks. However, its complexity means it’s best suited for technicians who are already well-versed in automotive diagnostics.
The lack of a case and instructions is a slight drawback, but it doesn’t take away from the tool’s overall value. If you’re an experienced technician looking for a high-quality diagnostic tool that can enhance your capabilities, the GODIAG GT100 is worth every penny.
Overall rating: 4 out of 5 stars. While it’s not perfect, the GODIAG GT100 offers a solid performance that makes it a worthy addition to any advanced automotive technician's toolkit.
